Bath waste and trap for whirlpool bathtubs, chrome

A566-112122

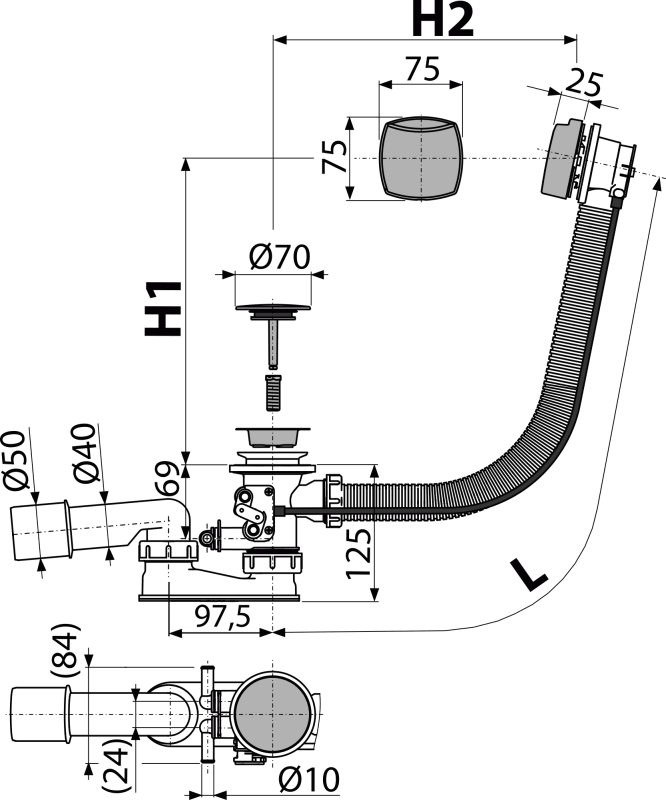

Product details

Odour trap	50 mm
Flow rate	48,6 l/min
Overflow flow rate	42 l/min
Resistance of odour trap against the pressure	588 Pa
Thermal resistance	95 ˚C

A part of the bath waste and trap is a mechanism, that when you open the drain outlet concurrently the valves open, so that can easily drain the residual water from the whirlpool bathtub
Compatible with most whirlpool and pearl systems
For connection serve two outlets – standard elbow
Wet odour trap with swivel elbow
Closing waste by pop-up mechanism
Overflow flexi pipe
The length of the bathtub trap 57 cm

Waste and trap body with overflow and discharge mechanism for HMS
Standard elbow for connection of HMS 2 pcs
Chrome-plated plastic control knob
Chrome-plated plastic plug
Chrome-plated stainless steel outlet grid
Odour trap of polypropylene, thermally and chemically resistant, longitudinally welded
Assembly kit
Profiled seal

P0038-ND	Plug metal (A55K, A56K)
P0039B-ND	Large plug (A51CRM, A564CRM1, A565CRM1)
P0041-ND	Control knob A51CR, A54CR
P070-ND	Control knob A564
P074-ND	Plug chrome for A564CRM2
P075-ND	Plug chrome for A564CRM3
P088-ND	Plug for KM3
S0003-ND	Nut G1 1/4"
S0004-ND	Nut G1 1/2"
S0009-ND	Conical sealing 44×39×5
S0069-ND	Lever A51
S0074-ND	Overflow grid A51–A56
S0082-ND	Bathtub plug sealing
S0084-ND	O-ring 10×2
S0100-ND	Shaped sealing
S0103-ND	Chrome grid
S0160-ND	Screw 33 mm long
S0316-ND	Screw 40 mm long
S0335-ND	Sealing A55
S0445-ND	Nut G1 3/4"
S0870-ND	Pipe elbow
S0871-ND	Throat stopper complete
S0918-ND	Hydromassage bracket
S0946-ND	Sealing for big bath plug
S0952-ND	O-ring 12.0×2
S0975-ND	O-ring 10/2
S1022-ND	Control knob chrome A51, A54
S1025-ND	Overflow grid
S1076-ND	Control knob bath traps A55, A550, A56 metal
S1095-ND	Control knob A51, A54 chrome
V0023-ND	Conical sealing 56×49×6
