| Load class K3 | 300 kg |
Drain throat extension neck + Grid for embedding tiles 300×300, galvanized steel
ADZ-NA101
Product details
- For drainage of balconies and terraces
- For permeable areas in the garden
- For drainage around the building facades
- To protect buildings against the ingress of water
- Simple installation
- Height-adjustable floor drain body extension 53-74 mm
- Width of the inlet slot 8 mm
- Easy access to the floor drain – simple cleaning
- Material of extention: galvanized steel
| Quantity (package) | 1 pc |
| Quantity (pallet) | 60 pcs |

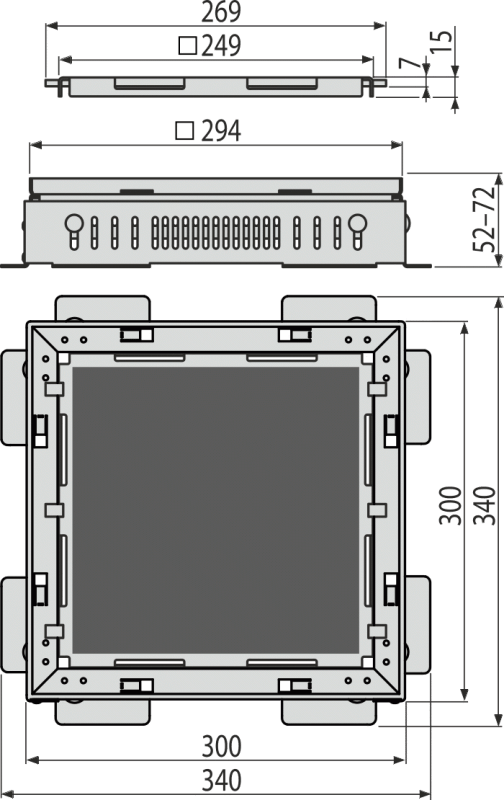

| Dimensions (piece) | 340×1340×74 mm |
| Weight (piece) | 3,1684 kg |
| Weight (pallet) | 190,1 kg |
- Adjustable extension body
- Grid
Downloads
| Product code | EAN | Technical sheet | ||
|---|---|---|---|---|
| ADZ-NA101 | 8595580581244 |  |
