| Load class K3 | 300 kg |
Product details
- For drainage of balconies and terraces
- For permeable areas in the garden
- For drainage around the building facades
- To protect buildings against the ingress of water
- Simple installation
- Easy access to the drain – easy to clean
- Height adjustable drainage channel body 60–80 mm
- Simple connection thanks to the accessories
- Fixing bolts – ensure perfect attachment of the grid in the channel and eliminate the sound effect during the use of the channel

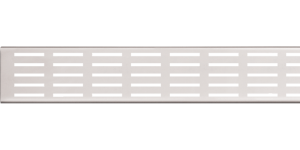

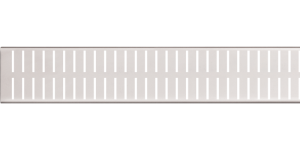

- Galvanized steel grid width 100 mm
- Material of drainage channel: galvanized steel
| Quantity (package) | 1 pc |
| Quantity (pallet) | 100 pcs |

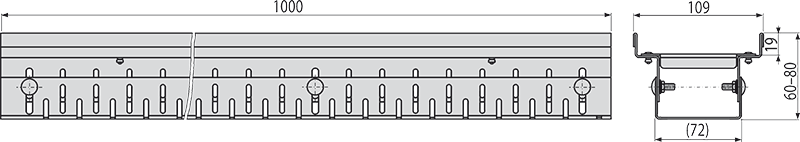

| Dimensions (piece) | 110×1000×60 mm |
| Dimensions (package) | 110×60×1000 mm |
| Weight (piece) | 3,028 kg |
| Weight (package) | 3,028 kg |
| Weight (pallet) | 322,8 kg |
- Drainage channel adjustable

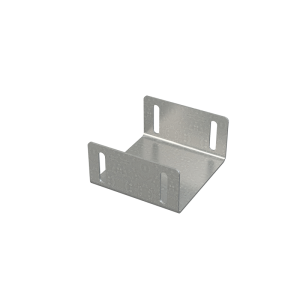

- Spacer 2 pcs
Downloads
| Product code | EAN | Technical sheet | ||
|---|---|---|---|---|
| ADZ102V | 8595580547974 |  |
