| Load class B125 | 12500 kg |
Outdoor drain box for AVZ104 with plastic frame and composite grid B125
AVZ104R-R402
Product details
- For outdoor drain channels AVZ104
- For cleaning and maintenance of outdoor drain channels
- Lock system allows easy connecting without additional fixing elements
- Sophisticated and solid locking mechanism for simple connection of the individual drains
- Composite grid – fixed to the drain with four stainless steel screws, inlet slit width 14 mm
- Side connection to waste DN110, 160, 200 mm
- Robust construction – self-supporting
- Numerous ribbing for a firm fixation within surrounding material
- Easy access to the floor drain – simple cleaning
- Serves to collect dirt and sand from roads and pavements
- Material with UV stabilizer against aging, fading and degradation of plastic
- Material: polypropylene filled with talc resistant to mechanical, chemical and thermal damage
| Quantity (package) | 1 pc |
| Quantity (pallet) | 24 pcs |

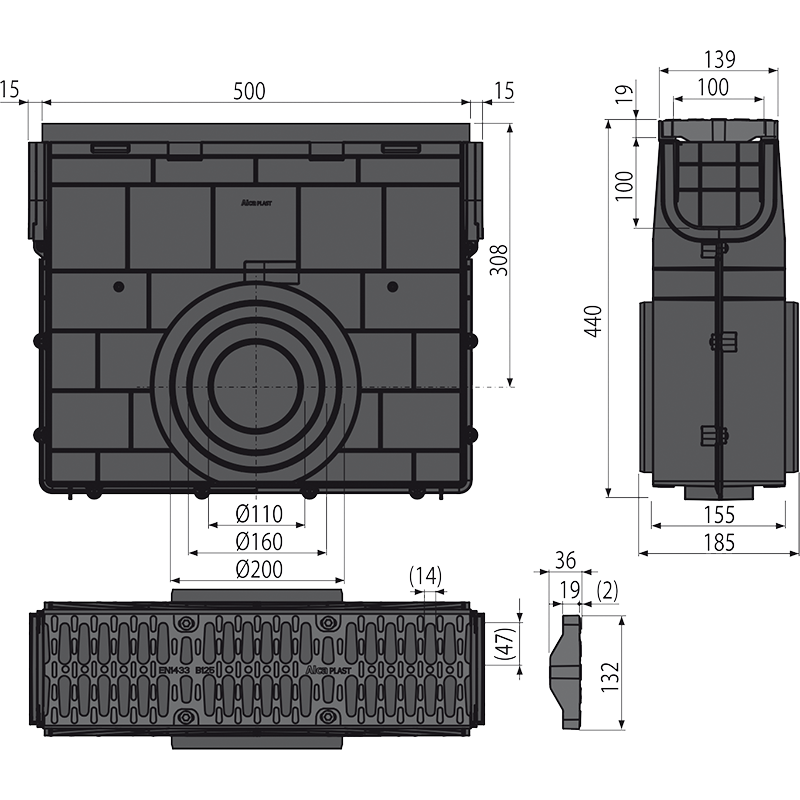

| Dimensions (piece) | 532×186×444 mm |
| Dimensions (package) | 800×1200×1540 mm |
| Weight (piece) | 3,9887 kg |
| Weight (package) | 3,9887 kg |
| Weight (pallet) | 115,7288 kg |

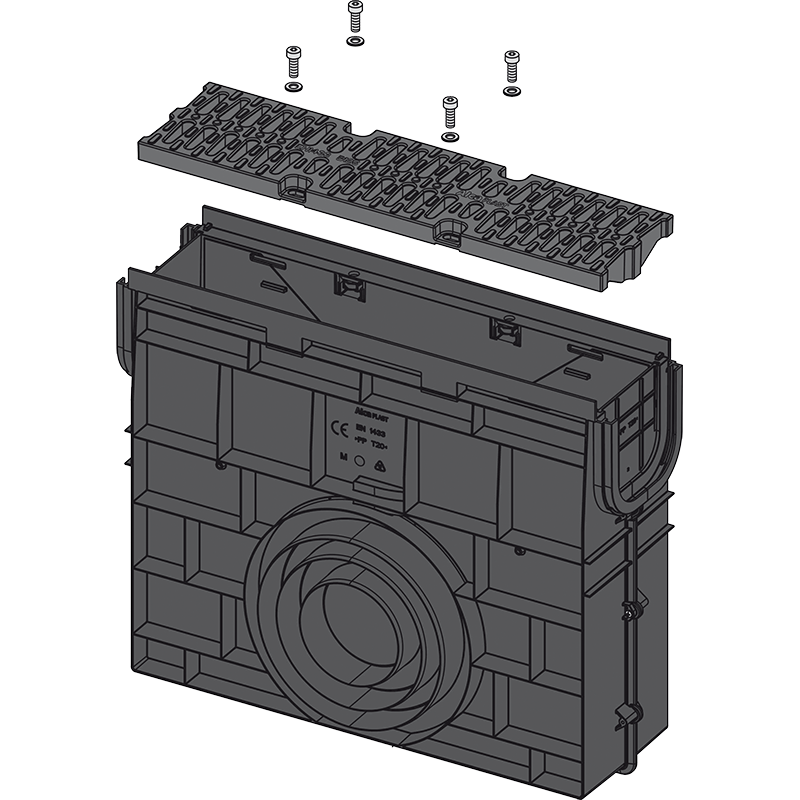

- Drain box body
- Composite grid – load class B125
- Stainless steel screws for fixing the grid to the drain, 4 pcs
Downloads
| Product code | EAN | Technical sheet | ||
|---|---|---|---|---|
| AVZ104R-R402 | 8595580547813 |  |
