Wall concealed WC cistern

AM112 Basicmodul

Technical parameters

Water connection from the back or top via mounting holesG1/2 "
Functional range of water pressure0,05 – 1,6 MPa
Recommended range of water pressure0,3 – 0,5 MPa
Big flush6 – 9 l
Small flush2,5 – 3,5 l
Factory setting of large flush6 l
Factory setting of small flush3 l
Hygienic reserve3 l
Water volume in the cistern9 l

    Application

  • For walling in and around – wet process
  • For installing the stand-alone WC or a WC that is firmly embedded in the floor

    Specifications

  • Dispenser for WC cistern tablets included
  • Angle valve with the ability to connect to the Mepla piping system
  • The construction of the polystyrene insulation simplifies the process of walling-in, prevents condensation forming on the surface of the tank and dampens the vibrations from the tank into the building structure
  • Dual flush independently adjustable with hygienic reserve
  • Suitable for installation of remote or sensor flushing
  • Compatible with all ALCA flush plates
  • The cistern is made of one piece, thus ensuring 100% impermeability
  • Water supply from the rear/top
  • Maintenance work without using any tools
  • The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
  • Mounting height 1062 mm
  • Installation depth adjustable from 20–95 mm
  • Installation depth 128 mm
  • Material: polypropylene
  • Norms

    EN 14124, EN 14055
Customs code 39229000
Quantity (package) 1 pc
Quantity (pallet) 20 pcs
Dimensions (piece) 1050×480×140 mm
Dimensions (package) 1050×480×140 mm
Weight (piece) 4,8719 kg
Weight (package) 4,8719 kg
Weight (pallet) 117,438 kg

    Scope of supply

  • Cistern with fill and flush valve
  • Fittings 1/2" water connection with the integrated angle valve Schell 1/2–3/8"
  • Fixation set: screw Ø5×40 – 5 pcs, dowel Ø8 – 5 pcs
  • Connection set Ø40 for connection to the toilet bowl from the water supply tank
  • End-caps set for protecting the connecting holes during installation of the system
  • The 2 piece cover of the service opening is simply adjustable
  • Telescopic mounting brackets 2 pcs
  • Perforated strap for attaching the cistern
  • Collar
  • Water supply sealing
  • Holder + holder lock
  • Rosette
  • Wrapping seal
  • Set for inserting toilet tablets

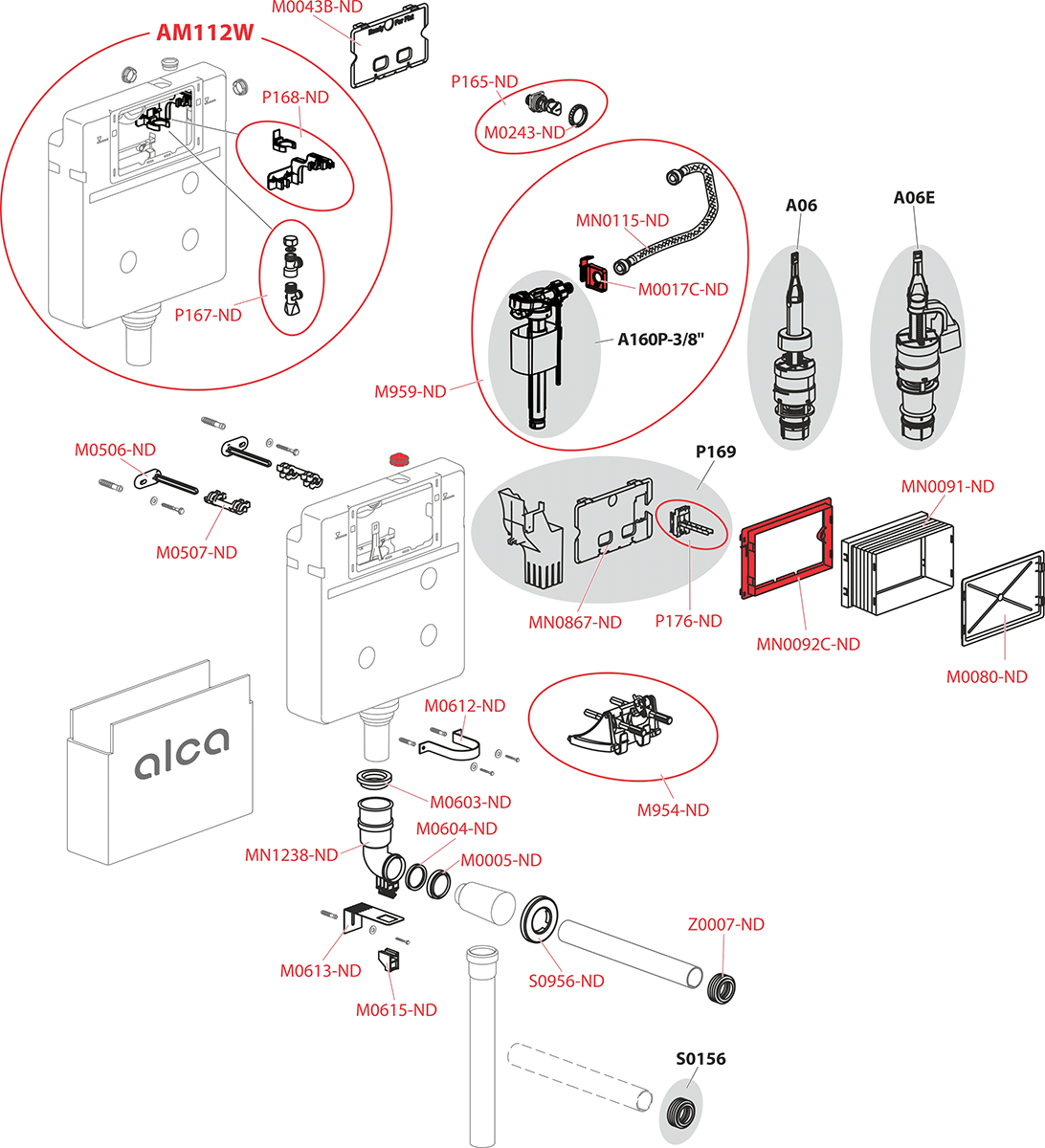

M0005-ND Water supply ring A100
M0017C-ND Inlet fill valve bracket
M0043B-ND Inner board
M0080-ND Sleeve lid
M0243-ND Nut for angle valve bracket
M0506-ND WC cistern hinge support
M0507-ND WC cistern hinges
M0603-ND Cuff
M0604-ND Inlet sealing
M0612-ND Perforated tape straight 17/6.5
M0613-ND Holder
M0615-ND Holder lock
M954-ND Mechanism complete
M959-ND Set for exchange of inlet fill valve
MN0091-ND Frame sleeve
MN0092C-ND Frame for WC system sleeve
MN0115-ND Pipe with O-ring for WC systems
MN0867-ND Inner plate for WC tablet dispenser
P165-ND Angle valve SCHELL with bracket and nut
P176-ND Tablet ejector and insert - set
S0956-ND Rosette DN40
Z0007-ND Wrapping seal DN60/40
