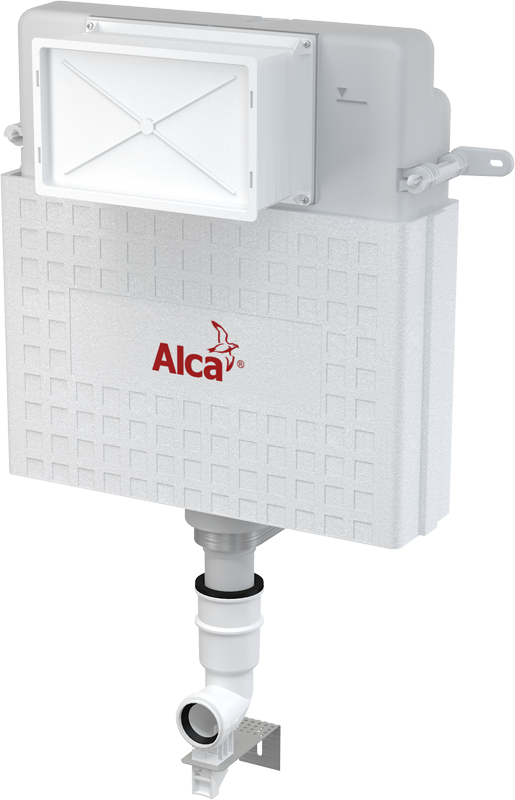

Wall concealed WC cistern

A112 Basicmodul

Production of this product was terminated
product detail img slider
product detail img slider
product detail img slider
Spare parts A112 Basicmodul
product detail img slider
product detail img slider
product detail img slider
Spare parts A112 Basicmodul

Product details

Technical specifications arrow icon
Water connection from the back or top via mounting holesG1/2 "
Functional range of water pressure0,05 – 0,8 MPa
Recommended range of water pressure0,3 – 0,5 MPa
Big flush6 – 9 l
Small flush2,5 – 3,5 l
Factory setting of large flush6 l
Factory setting of small flush3 l
Hygienic reserve3 l
Water volume in the cistern9 l
  • For walling in and around – wet process
  • For installing the stand-alone WC or a WC that is firmly embedded in the floor
  • The construction of the polystyrene insulation simplifies the process of walling-in, prevents condensation forming on the surface of the tank and dampens the vibrations from the tank into the building structure
  • Dual flush independently adjustable with hygienic reserve
  • Suitable for installation of remote or sensor flushing
  • Compatible with all ALCA flush plates
  • The cistern is made of one piece, thus ensuring 100% impermeability
  • Water supply from the rear/top
  • Maintenance work without using any tools
  • The service opening cover simplifies assembly and prevents the penetration of moisture and impurities

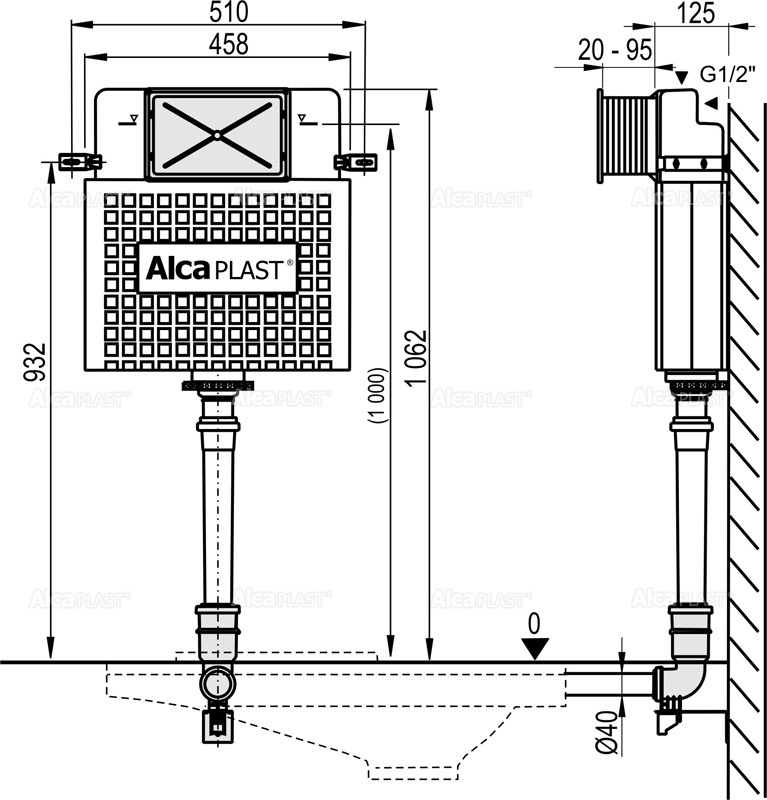

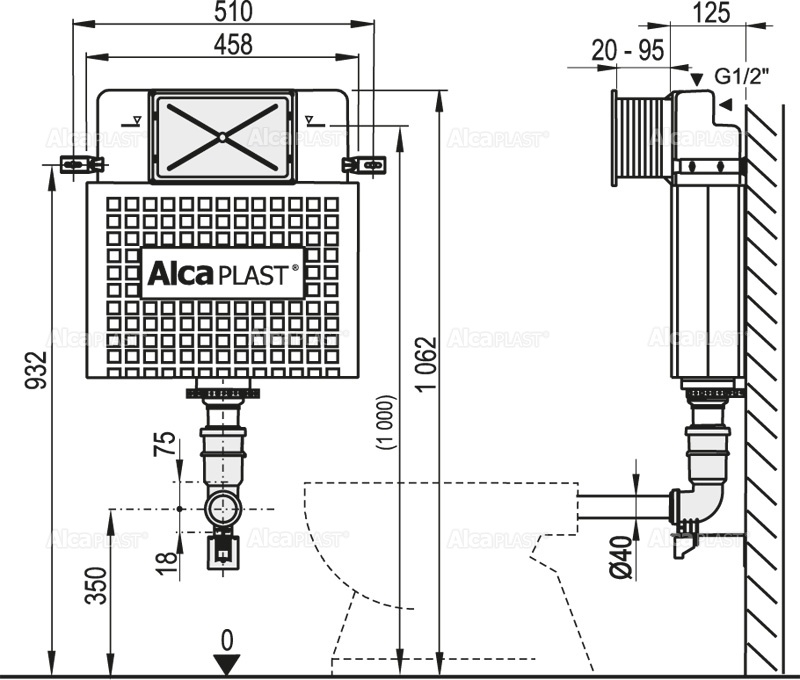

  • Mounting height 1062 mm
  • Installation depth adjustable from 20–95 mm
  • Installation depth 125 mm
  • EN 14124, EN 14055
Quantity (package) 1 pc
Quantity (pallet) 20 pcs
Dimensions (piece) 1050×480×140 mm
Dimensions (package) 1050×140×480 mm
Weight (piece) 4,5581 kg
Weight (package) 4,5581 kg
Weight (pallet) 111,162 kg
  • Cistern with fill and flush valve
  • Fittings 1/2" water connection with the integrated angle valve Schell 1/2–3/8"
  • Fixation set: screw Ø5×40 – 5 pcs, dowel Ø8 – 5 pcs
  • Connection set Ø40 for connection to the toilet bowl from the water supply tank
  • End-caps set for protecting the connecting holes during installation of the system
  • Service opening cover is simply adjustable, screws 4 pcs
  • Telescopic mounting brackets 2 pcs
M0005-NDWater supply ring A100
M0017C-NDInlet fill valve bracket
M0039-NDSleeve for WC systems
M0043B-NDInner board for WC systems
M0080-NDSleeve cover for WC systems
M0243-NDNut for angle valve bracket
M0506-NDWC cistern hinge support
M0507-NDWC cistern hinges
M0603-NDCuff
M0604-NDInlet sealing
M0612-NDPerforated tape straight 17/6.5
M0613-NDHolder
M0615-NDHolder lock
M905-NDComplete mechanism
MN0091-NDFrame sleeve for WC systems
MN0092-NDFrame for WC system sleeve
MN0115-NDPipe with O-ring for WC systems
MN1238-NDWater supply elbow AM112
P165-NDAngle valve with bracket and nut
P211-NDShut valve Schell replacement kit
S0032-NDScrew into metal 4.2×16 DIN 7983 A2
S0956-NDRosette DN40
Z0007-NDWrapping seal DN60/40
