Wall concealed WC cistern

AM1112 Basicmodul Slim

Product details

Water connection from the back or top via mounting holes	G1/2 "
Functional range of water pressure	0,05 – 1,6 MPa
Recommended range of water pressure	0,3 – 0,5 MPa
Factory setting of large flush	6 l
Factory setting of small flush	3 l
Hygienic reserve	3 l
Water volume in the cistern	9 l

Angle valve with the ability to connect to the Mepla piping system
The construction of polystyrene insulation prevents condensation forming on the surface of the tank and dampens the vibrations from the tank into the building structure
Dual flush independently adjustable with hygienic reserve

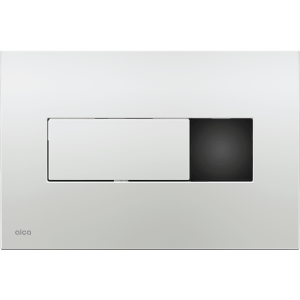

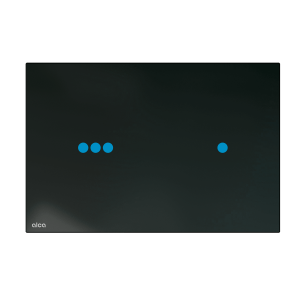

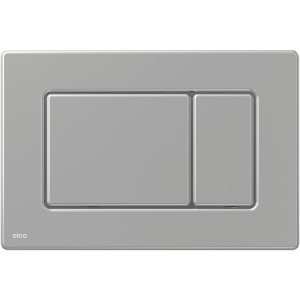

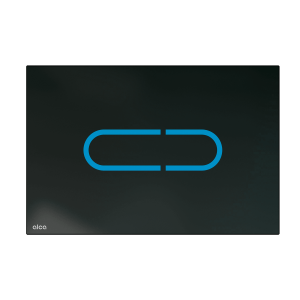

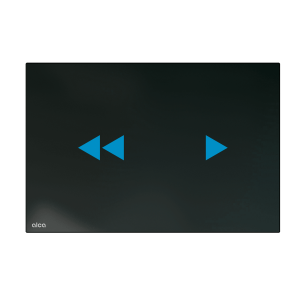

Compatible with all flush plates Alca except sensor flush plates and NIGHT LIGHT
The cistern is made of one piece, thus ensuring 100% impermeability
Water supply from rear / top / left / right
Maintenance work without using any tools
The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
Mounting height 1070 mm
Installation depth adjustable from 20–60 mm
Installation depth 83 mm
Material: polypropylene

Cistern with fill and flush valve
Threading 1/2" for water connection with an integrated angle valve 1/2"–3/8"
Fixation set: combi screw Ø8×120 – 4 pcs, dowel Ø12 – 4 pcs, screws 5×40, dowel Ø8
Connection set Ø40 for connection to the toilet bowl from the water supply tank
The 2 piece cover of the service opening is simply adjustable

M0005-ND	Water supply ring A100
M0080-ND	Sleeve cover for WC systems
M0243-ND	Nut for angle valve bracket
M0603-ND	Cuff
M0604-ND	Inlet sealing
M0613-ND	Holder
M0615-ND	Holder lock
M958-ND	Cover with mechanism for WC systems Slim
M961-ND	Set for exchange of inlet fill valve - Slim
MN0082-ND	Spacer for WC cistern Slim
MN0091-ND	Frame sleeve for WC systems
MN0092C-ND	Frame for WC system sleeve
MN0116-ND	Pipe with O-ring for WC systems Slim
MN1238-ND	Water supply elbow AM112
MS0018C-ND	Fill valve bracket for WC systems Slim
MS0070-ND	Combi screw M8×120 Zn
N0150-ND	Spacer for inlet fill valve – Slim
P165-ND	Angle valve with bracket and nut
P211-ND	Shut valve Schell replacement kit
S0956-ND	Rosette DN40
Z0007-ND	Wrapping seal DN60/40
