Water connection from the back or top via mounting holes | G1/2 " |
Functional range of water pressure | 0,05 – 1,6 MPa |
Recommended range of water pressure | 0,3 – 0,5 MPa |
Factory setting of large flush | 6 l |
Factory setting of small flush | 3 l |
Hygienic reserve | 3 l |
Water volume in the cistern | 9 l |
Wall concealed WC cistern
A1112B Basicmodul Slim
Product details
- For walling in and around – installation depth only 84 mm
- For installing the stand-alone WC or a WC that is firmly embedded in the floor
- The construction of the polystyrene insulation simplifies the process of walling-in, prevents condensation forming on the surface of the tank and dampens the vibrations from the tank into the building structure
- Dual flush independently adjustable with hygienic reserve
- Compatible with all our flush plates. except Alca sensor flush plates
- The cistern is made of one piece, thus ensuring 100% impermeability
- Water supply from the rear/top
- Maintenance work without using any tools
- The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
- Mounting height 1070 mm
- Installation depth adjustable from 20–60 mm
- Installation depth 84 mm
- EN 14124, EN 14055,
Quantity (package) | 1 pc |
Quantity (pallet) | 20 pcs |
Dimensions (piece) | 965×515×110 mm |
Dimensions (package) | – mm |
Weight (piece) | 5,1532 kg |
Weight (package) | – kg |
Weight (pallet) | 140 kg |
- Cistern with fill and flush valve
- Fittings 1/2" water connection with the integrated angle valve Schell 1/2–3/8"
- Fixation set: combi screw Ø8×120 – 4 pcs, dowel Ø12 – 4 pcs, screws 5×40, dowel Ø8
- Connection set Ø40 for connection to the toilet bowl from the water supply tank
- End-caps set for protecting the connecting holes during installation of the system

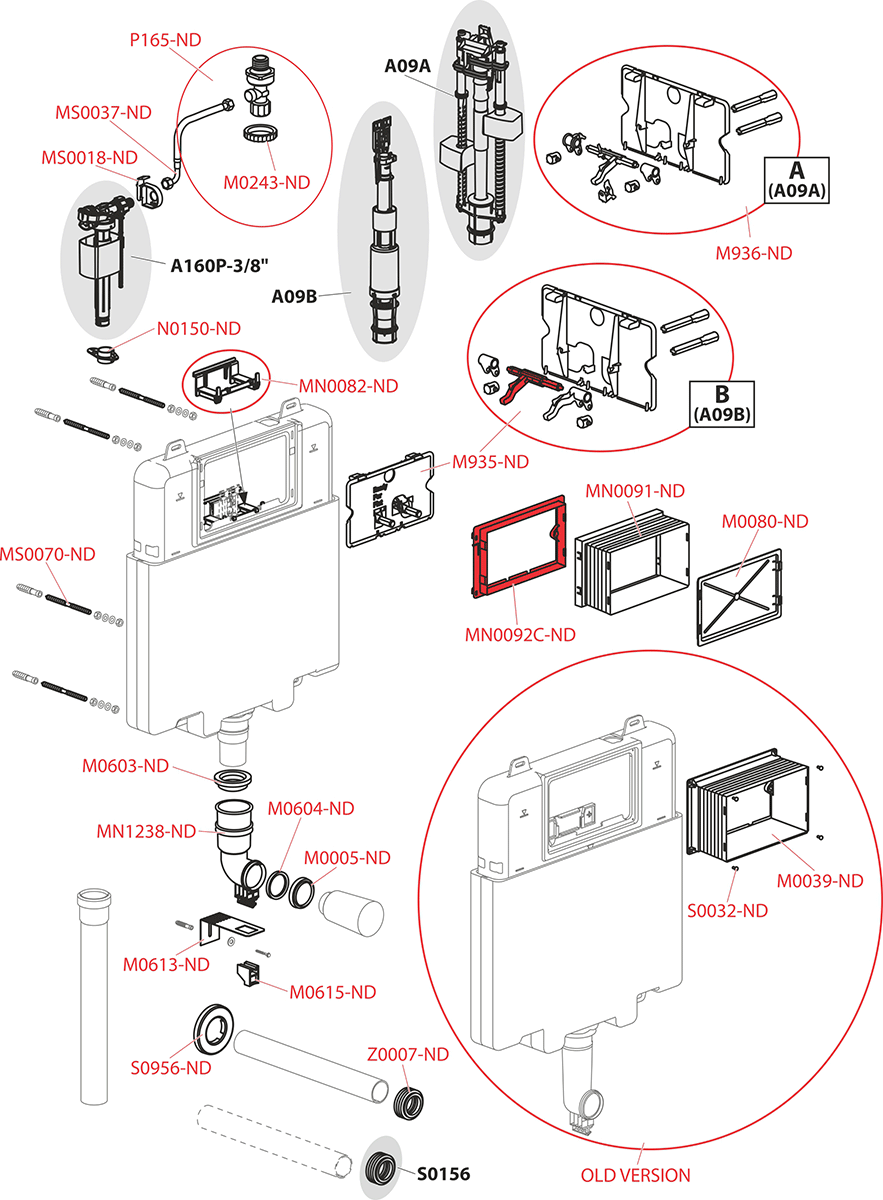

M0005-ND | Water supply ring A100 |
M0039-ND | Sleeve for WC systems |
M0080-ND | Sleeve cover for WC systems |
M0243-ND | Nut for angle valve bracket |
M0603-ND | Cuff |
M0604-ND | Inlet sealing |
M0613-ND | Holder |
M0615-ND | Holder lock |
M935-ND | Plate for WC systems |
M936-ND | Plate for WC systems A |
MN0082-ND | Spacer for WC cistern Slim |
MN0091-ND | Frame sleeve for WC systems |
MN0092C-ND | Frame for WC system sleeve |
MN1238-ND | Water supply elbow AM112 |
MS0018-ND | Fill valve bracket for WC systems Slim |
MS0037-ND | Pipe 26 cm 3/8"×3/8" |
MS0070-ND | Combi screw M8×120 Zn |
N0150-ND | Spacer for inlet fill valve – Slim |
P165-ND | Angle valve SCHELL with bracket and nut |
S0032-ND | Screw into metal 4.2×16 DIN 7983 A2 |
S0956-ND | Rosette DN40 |
Z0007-ND | Wrapping seal DN60/40 |
