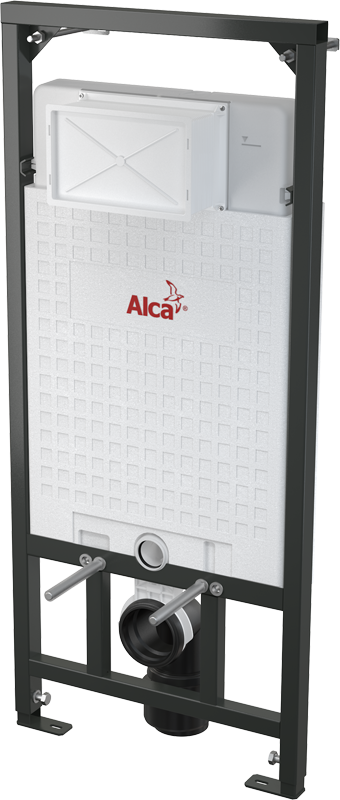

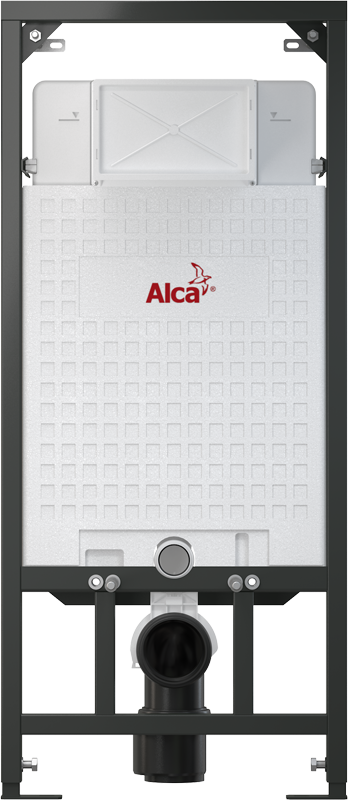

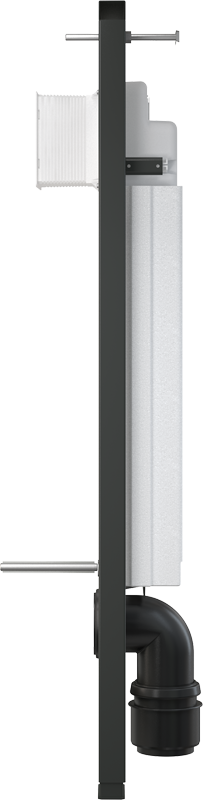

For dry build up: A101/1200 Sádromodul

Water connection from the back or top via mounting holes	G1/2 "
Functional range of water pressure	0,05 – 1,6 MPa
Recommended range of water pressure	0,3 – 0,5 MPa
Big flush	6 – 9 l
Small flush	2,5 – 3,5 l
Factory setting of large flush	6 l
Factory setting of small flush	3 l
Hygienic reserve	3 l
Water volume in the cistern	9 l
Load test	400 kg

Application

For wall-hung WC
For mounting in front of a support wall or in to a plasterboard construction
For floor thickness 0–200 mm
For installation of wall-hung WC pans with a connecting pitch of 180 mm or 230 mm

Features

Dispenser for WC cistern tablets included
Adjustable anchor feet and a spring-lock system, with a range of 0–200 mm
Visible marks for both leveling and the centerline
Sliding rail holder for the waste connector can be set to eight positions between 0–93 mm
Angle valve with the ability to connect to the Mepla piping system
The frame allows the anchoring to a separate sufficiently strong plasterboard partition, in front of the bearing wall
The installed module is covered with a plasterboard panel and there is no need for any additional fixing or anchoring elements
The construction of polystyrene insulation prevents condensation forming on the surface of the tank and dampens the vibrations from the tank into the building structure
Prepared for connecting a bracket with a DG 1/2” conversion for bidet seats and sprays
Cistern hinges made of two-component material insulate the transmission of vibrations from buildings
Possibility of tilting the cistern for easy installation in wooden construction buildings or mobile cells
Dual flush independently adjustable with hygienic reserve
Suitable for installation of remote or sensor flushing
Compatible with all ALCA flush plates
Maintenance work without using any tools
Water supply from rear / top / left / right
The cistern is made of one piece, thus ensuring 100% impermeability
The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
Installation depth adjustable from 20–95 mm
Installation depth 125 mm
Frame material: powder-coated metal

Norms

EN 14124, EN 14055

Logistic information

Quantity (package)	1 pc
Quantity (pallet)	20 pcs
Dimensions (piece)	1130×145×520 mm
Dimensions (package)	1130×520×145 mm
Weight (piece)	13,4799 kg
Weight (package)	13,4799 kg
Weight (pallet)	289,598 kg

Scope of supply

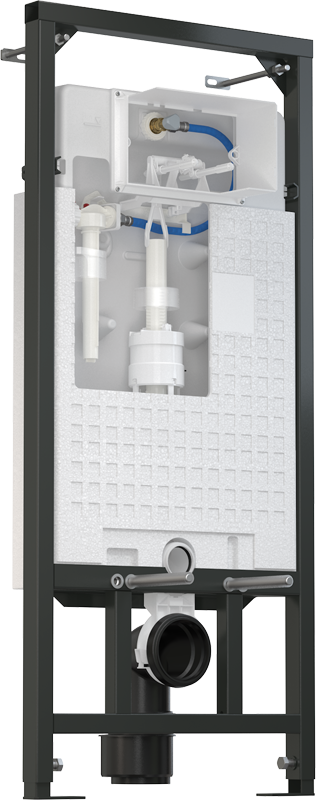

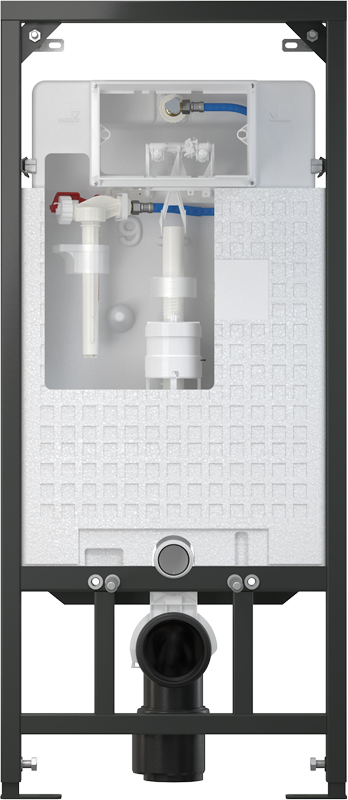

Cistern with fill and flush valve
Self-supporting frame
Threading 1/2" for water connection with an integrated angle valve 1/2"–3/8"
Fixation set: screw Ø8×60 – 4 pcs, dowel Ø12 – 4 pcs
Fixation material for fixing the WC pan: threaded rod M12 – 2 pcs, washers – 4 pcs , cover – 2 pcs, nut – 2 pcs, thread protector – 2 pcs
Elbow waste connector HT 90/90 polyethylene, PE-HD
Waste reduction HT 90/110 polyethylene, PE-HD
Inlet seal, PP outlet, wrapping seal
Drainage seal, PP connector, connector seal
End-caps set for protecting the connecting holes during installation of the system
The 2 piece cover of the service opening is simply adjustable
Set for inserting toilet tablets

Spare parts

M0021-ND	Inlet sealing (WC systems)
M0023-ND	Rubber pipe sealing 45×58×25 (WC systems)
M0026-ND	Waste sealing (WC systems)
M0028-ND	Coupler sealing (WC systems)
M0029-ND	Waste pipe holder
M0039-ND	Sleeve for WC systems
M0080-ND	Sleeve cover for WC systems
M0243-ND	Nut for angle valve bracket
M1671-ND	Opening cover
M903-ND	Threaded rods + accessories
M905-ND	Complete mechanism
MN0091-ND	Frame sleeve for WC systems
MN0092-ND	Frame for WC system sleeve
