| Odour trap | 53 mm |
| Flow rate | 44 l/min |
| Thermal resistance | 95 ˚C |
| Hose connector | 17 mm |

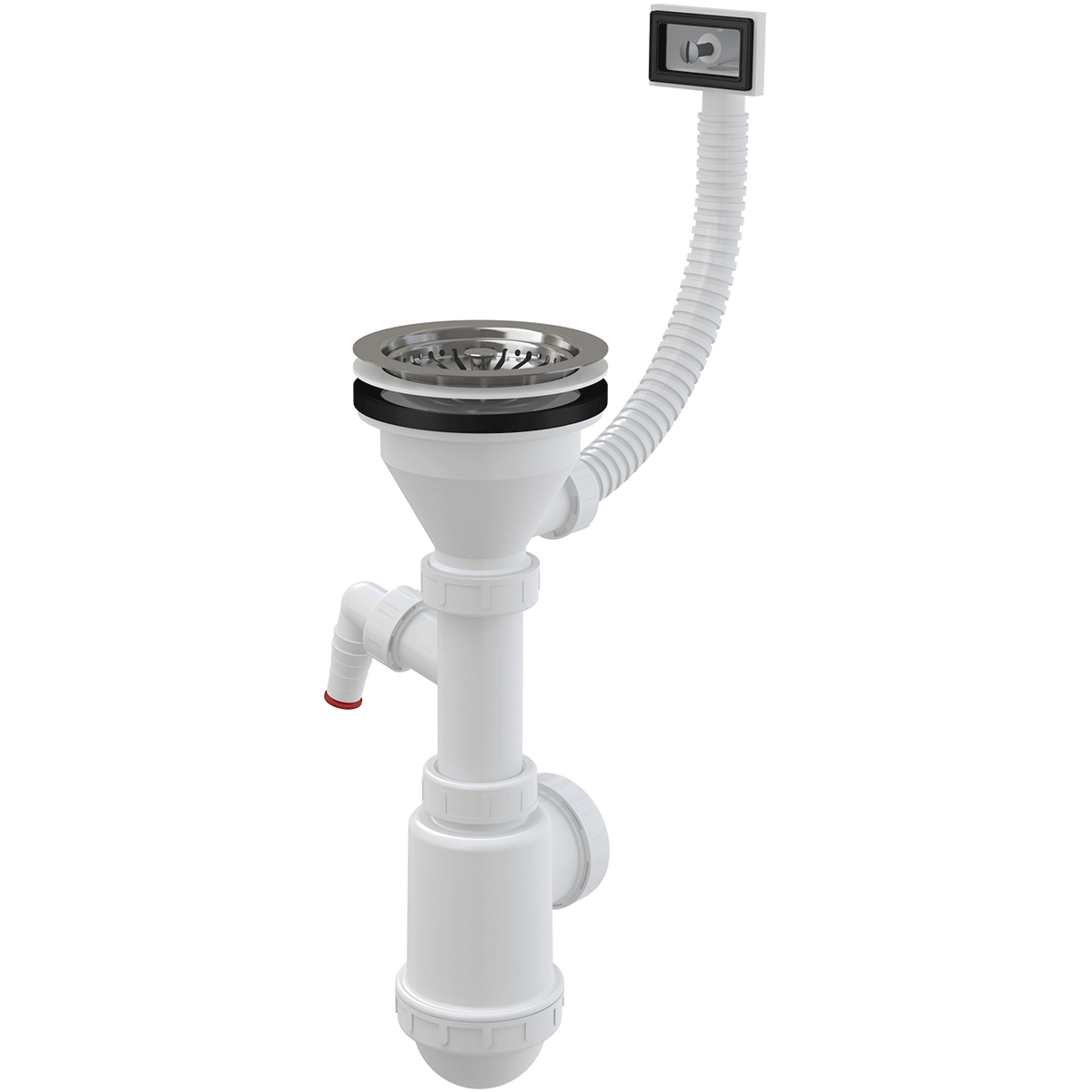

Sink waste and trap with stainless steel grid DN115, flexi overflow and connector
A447P-DN50/40
Product details
- For sink with overflow
- Screen on the waste serves as a plug
- Waste outlet ready for connection to drain pipe Ø50 mm or Ø40 mm
- With connector for washing machine or dishwasher
- Material: polypropylene
- EN 274
| Quantity (package) | 14 pcs |
| Quantity (pallet) | 392 pcs |
| Dimensions (piece) | 280×120×180 mm |
| Dimensions (package) | 590×240×390 mm |
| Weight (piece) | 0,5616 kg |
| Weight (package) | 7,8624 kg |
| Weight (pallet) | 240,1472 kg |
- Sink trap body with connector and overflow
- Stainless steel plug
- Stainless steel outlet grid
| S0120-ND | Conical sealings 28×25×5 |
| S0121-ND | Nut G1" |
| S0317-ND | Sealing 115×90×2 |
| S0323-ND | Sealing 45×37×3 |
| S0981-ND | Sealing for sink plug DN115 |
| V0023-ND | Conical sealing 56×49×6 |
Downloads
| File Name | Size | Action | |
 |
A447P-DN50/40 - Declaration of conformity.pdf | 193.89 kB |
Download
|
|
A447P-DN50/40 - Certificate.pdf | 589.77 kB |
Download
|
|
A447P-DN50/40 - Installation instructions.pdf | 654.28 kB |
Download
|
|
A447P-DN50/40 - CAD drawing.dwg | 224.45 kB |
Download
|
|
A447P-DN50/40 - CAD drawing.dxf | 584.08 kB |
Download
|
| Product code | EAN | Technical sheet | ||
|---|---|---|---|---|
| A447P-DN50/40 | 8594045936018 |  |
